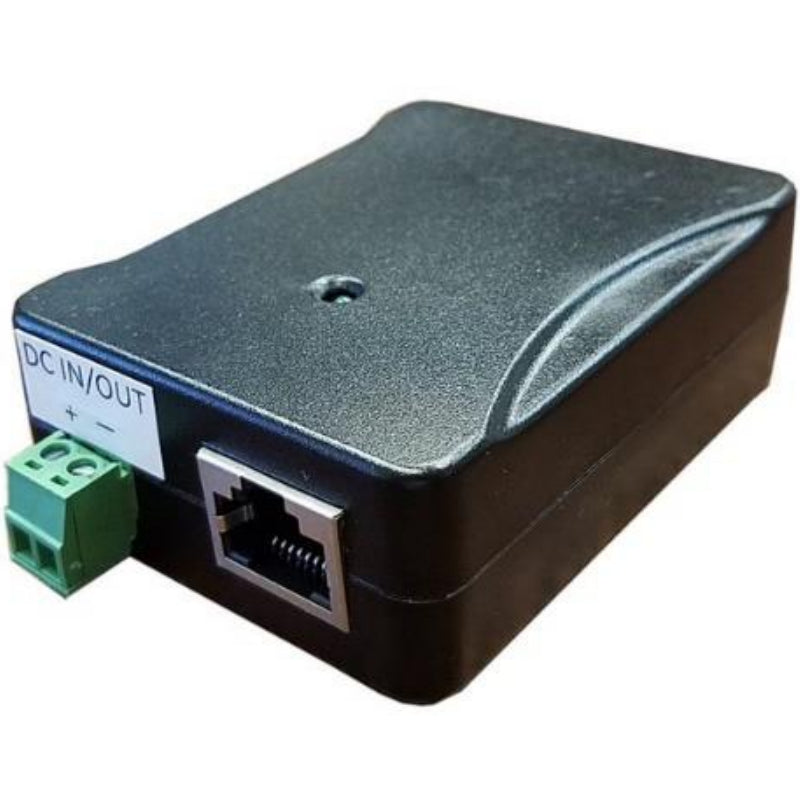

Tycon Power Systems Poe-Inj-1000-Wts High Power Gigabit 8 Wire Passive Poe Injector, Suitable For Starlink

Tycon Power Systems POE-INJ-1000-WTs Gigabit 8 Wire Passive PoE Injector for Starlink. The POE-INJ-1000-WTs are shielded passive power over Ethernet Inserters and Splitters that are compatible with data speeds up to 1 gigabit. The DC connector is a removeable wire terminal type power connector. The RJ45 connectors are shielded to ensure continuous shielding from power source to destination device. Power is supplied on all 8 Ethernet pins (4 Pair) This allows for transport of up to 130W over a single CAT5/6 wire up to 100m Details Product Code POE-INJ-1000-WTs DC Input Voltage Range 5V to 58VDC Data Speeds 10/100/1000Mb Maximum POE Current 2.25A, 130W Max DC Connector Removeable Wire Terminal Connector – Maximum Wire Size 14AWG RJ45 PoE Pinout 1,2,3,6 (V+) 4,5,7,8 (V-) Operating Temperature -40°F to 185°F (-40°C to +85°C) Operating Humidity Size 0 to 99% RH Size 2.8 x 2.1 x 0.95” (71x53x24mm) Weight 2.3oz (65g)
