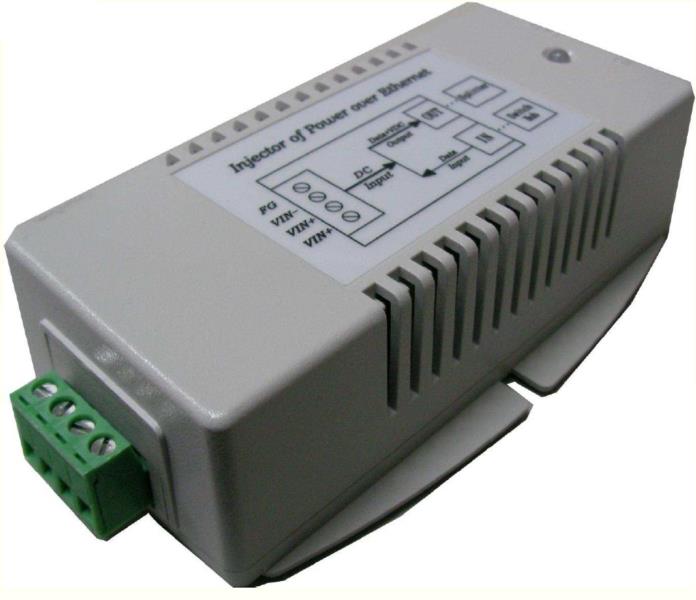

Tycon Power Tp-Dcdc-4856g-Vhp Dc To Dc Poe Converter

The Gigabit compatible TP-DCDC4856G-VHP is a special very high power DC to DC converter designed especially for Ubiquiti airFiber antenna systems and other systems which require high power passive POE such as Axis High Power POE PTZ security cameras. The unique POE inserter supplies 56VDC POE power on all 8 Ethernet wires. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated. Details Manufacturer's Product Code TP-DCDC-4856G-VHP DC Input Voltage 36VDC to 72VDC DC Input Connector Removable Screw Type Compression Wire Terminal (12 AWG Max) DC Output Voltage 56VDC PoE Method Passive ( 8 Wire , 4 Pair ) Data in & Data/POE Output Connector RJ45 (Shielded) Output Current (max) 1.25A Output Power (max) 70W Self Consumption Power 2W Ethernet Speed 1Gbps Interfaces (2) RJ45 Female; (1) Terminal Block Dimensions (LxWxH) 125 x 75 x 38mm
