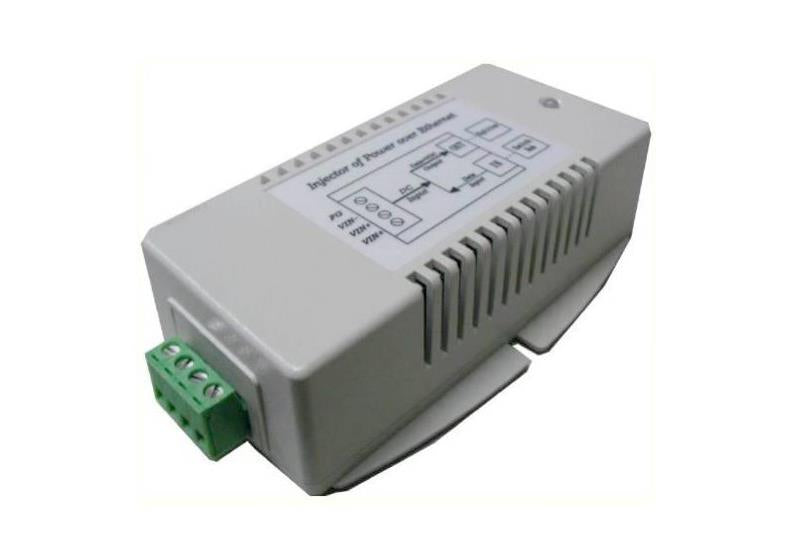

Tycon 36-72vdc In, 56vdc 30w Out Dc To Dc Converter Poe Injector

The Tycon TP-DCDC-48248-HP DC to DC converters take an input of 36-72VDC and convert to 56V DC 30W regulated POE output. The Tycon TP-DCDC-4848-HP includes an integrated POE inserter to apply the DC voltage to the CAT5 cable on Pins 4,5 (V+) and Pins 7,8 (V-). It also has 2 isolated inputs to handle two power sources like a primary and backup source for uninterrupted failsafe operation. The input and output power are isolated so they can be used to convert a negative voltage to a positive voltage. Because of their wide input voltage and regulated output, they can also be used to stabilize a voltage output. Example; a voltage source is a long distance from the equipment with wide voltage fluctuations seen at the equipment. Details Manufacturer's Product Code TP-DCDC-4848-HP DC Input Voltage 36VDC to 72VDC DC Input Connector Removable Screw Type Compression Wire Terminal (12 AWG Max) DC Output Voltage 56VDC Data in & Data/POE Output Connector RJ45 (Shielded) Output Current (max) 0.5A Output Power (max) 30W Self Consumption Power 2W Dimensions (LxWxH) 125 x 75 x 38mm
