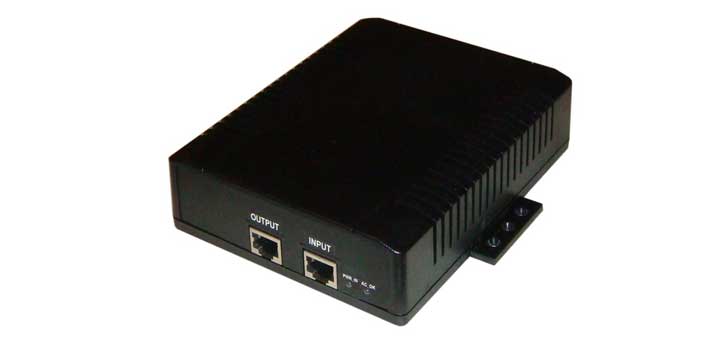

Tycon Power 48vdc Poe Input 24vac @2.9a Output 70w

Tycon Power 48VDC PoE input 24VAC @2.9A output 70W. The Tycon Power POE-SPLT Active splitters are unique Power over Ethernet adapters which converts a DC PoE input voltage to AC or DC regulated output voltages. The output is provided on a standard 5.5mm/2.1mm barrel connector on a 14” cable or in the case of the 80W unit, on a wire terminal connector. Ethernet speeds of 10/100MB and 10/100/1000MB are available. Inputs and outputs are isolated. They have various protections for surge, short circuit, overload and over-voltage. Details Manufacturer's Product Code POE-SPLT-4824AC Output Voltage 24VAC Output Current 3.34A @24VAC Output Power 80W Output Connector Wire Terminal (12AWG) Load Regulation 5% Line Regulation 1% POE Input (RJ45) 40 - 60VDC (4 pairs) Ethernet Speed 10/100/1000MB Efficiency 80% Min EMC Standards FCC Class B NE55022 Class B, CE Isolation Voltage 1500VDC Isolation Resistance 100M Ohms Minimum Operating Temperature -20 to +60°C (-4 to +140°F) Operating Humidity (RH) 5% - 90% non condensing Storage Temperature -40 to +80°C (-40 to +176°F) Dimensions (LxWxH) 150 x 140 x 40mm (5.9 x 5.5 x 1.6”) Weight 350g (12oz)
