Tycon Power 10-60vdc In Dual Channel Dc To Dc Convertor Passive Gigabit Poe Injector

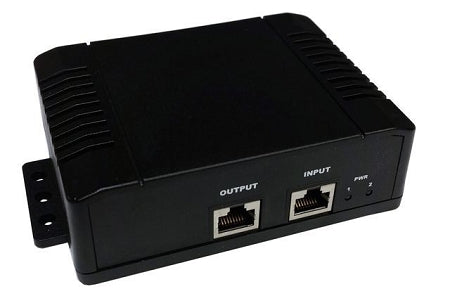

Tycon Power 10-60VDC in Dual Channel DC to DC Convertor Passive Gigabit PoE Injector. The Tycon Systems Gigabit compatible TP-DCDC-1256G-VHP is a special very high power DC to DC converter / POE inserter designed especially for higher power PoE applications. The TP-DCDC-1256G-VHP is designed for those High Power Passive PoE devices like Ubiquiti airFiber. The unique POE inserter supplies 56VDC POE power on all 8 Ethernet wires (4 Pair) with a total output of up to 70W. The wide input voltage range (10VDC to 60VDC) makes these units universal in battery powered applications. The units input and output is isolated so they work in a negative ground of positive ground system. They have two DC inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The units come complete with a DIN Rail mounting kit for mounting to a standard DIN rail. Details Manufacturer's Product Code TP-DCDC-1256G-VHP DC Input Voltage +/- 10VDC to 60VDC DC Input Connector Removeable Screw Type Compression Wire Terminal, 5 Pin (12 AWG Max) DC Output Voltage 56VDC Passive (8 Wire, 4 Pair) PoE Data in & Data/POE Output Connector RJ45 (Shielded) Output Current (max) 1.25A Output Power (max) 70W Self Consumption Power 2W Ethernet Speed 1Gbps Dimensions (LxWxH) 90 x 118 x 40mm
