Tycon 18-36vdc In, 56vdc 70w Out Dc To Dc Converter
Overview

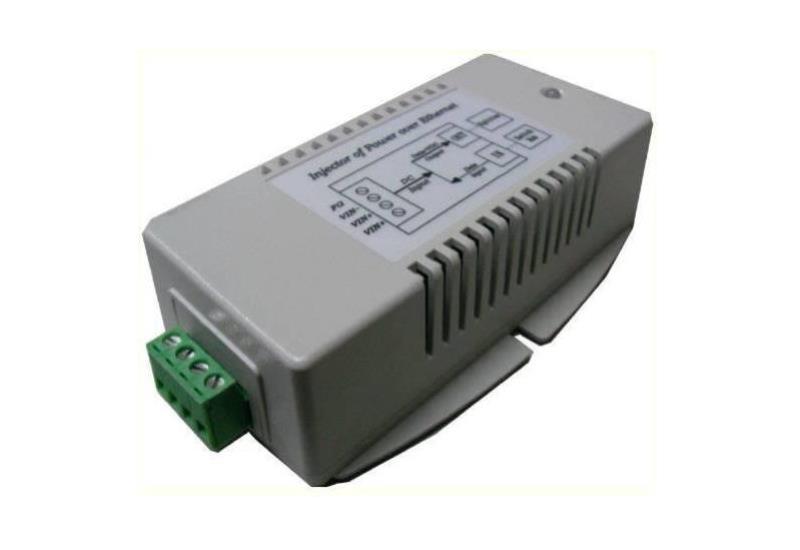

The Tycon Power Gigabit compatible TP-DCDC-2456G-VHP is a special very high power DC to DC converter / POE inserter designed especially for Ubiquiti airFiber antenna systems and other systems which require high power passive POE such as Axis High Power POE PTZ security cameras. The unique POE inserter supplies 56VDC POE power on all 8 Ethernet wires. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated.
Details
Manufacturer's Product Code
TP-DCDC-2456G-VHP
DC Input Voltage
18VDC to 36VDC
DC Input Connector
Removable Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage
56VDC (Passive 8 Wire)
Data in & Data/POE Output Connector
RJ45 (Shielded)
Output Current (max)
1.25A Total
Output Power (max)
70W Total
Self Consumption Power
2W
Dimensions (LxWxH)
125 x 75 x 38mm
Features
- Input Voltage 24VDC (18-36VDC)
- 8 wire 56VDC Passive POE Output
- High Power Output to 70W
- Dual DC Inputs for Connecting 2 Power Sources
- Gigabit Data Throughput
- Low self consumption power (<2W)
- Short Circuit, Over Current and Reverse/Over Voltage Protection
- Industrial Temperature Range
- Applications: 24VDC Remote Power Systems, Ubiquiti airFiber™ Antennas Axis, Q6032-E, Q6034-E and Q6035-E PTZ Security Cameras
