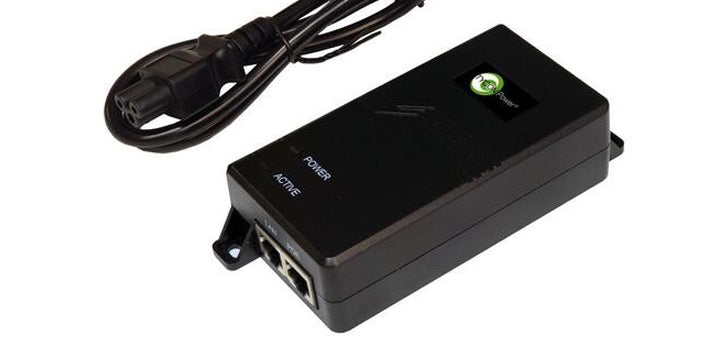

Tycon Power Systems Tp-Poe++10g 56v 60w 4 Pair Poe++ 10gbps Ethernet Injector

Tycon Power Systems TP-POE++10G 56V 60W 4 pair PoE++ 10Gbps Ethernet Injector. The TP-POE++10G is a compact 10/100/1000/10000MB (10G) desktop PoE++ inserter with 120/240VAC auto-ranging input. The inserter has an output that is 4 pair: Mode A (1,2+ 3,6-) and Mode B (4,5+ 7,8-) 802.3at PoE++ at up to 56W. Details Product Code TP-POE++10G AC Input Voltage 100-240VAC 50/60Hz Output PoE Voltage 56VDC +/-2V, 802.3at PoE++, 4 Pair: Mode A (Pins 1,2+ 3,6-) and Mode B (Pins 4,5+ 7,8-) Maximum Load 1A (56W) Max Protections Short Circuit, Overcurrent, Surge/ESD (4kV) Efficiency 84% Minimum Ripple and Noise 200mV p-p Data Rate 10/100/1000/10000Mbps (10Gb) No Load Consumption 1W Max Operating Temperature -20 to +50°C Storage Temperature -30 to +80°C Operating Humidity 5% to 90% non condensing Size (L x W x H) 5.5 x 2.5 x 1.4” (138.5 x 62.5 x 35.3mm) Weight 8.1oz (230g) MTBF 100,000 Hrs Certifications CE, FCC Connectors RJ45 Shielded Jacks Ethernet Cable Compatibility CAT6a 10G to 55m; CAT6e 10G to 80m, 5G to 100m
