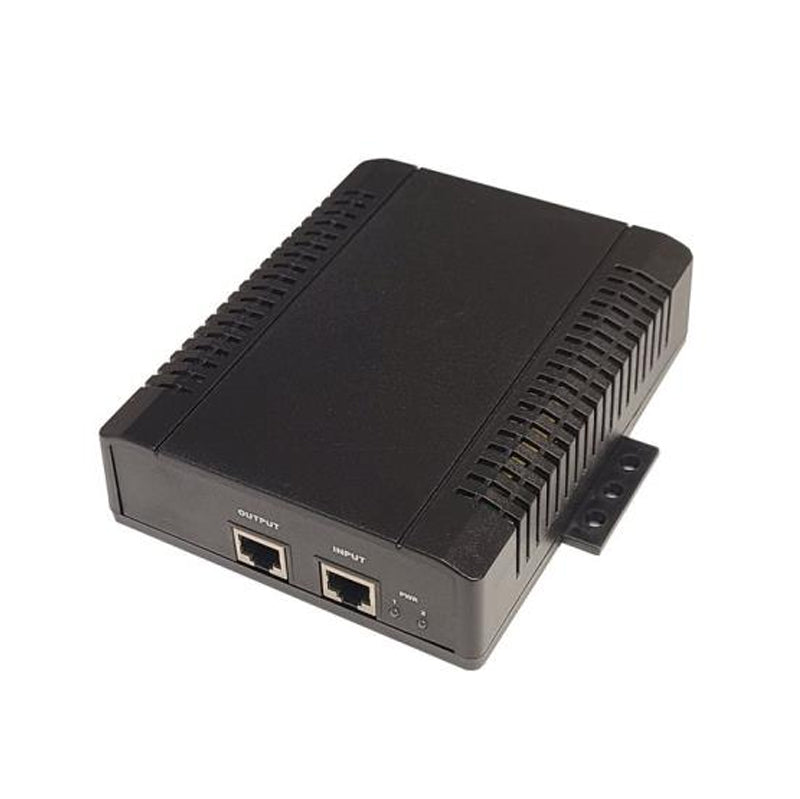

Tycon Power Systems Tp-Poe-Hp-56g 56v 112w High Power Gigabit Passive Poe
Availability: In Stock
SKU: TP-POE-HP-56G
Regular price
$373.75NZD
Shipping calculated at checkout.
Ready to ship!
You have got FREE SHIPPING
Expected Delivery on - .
5

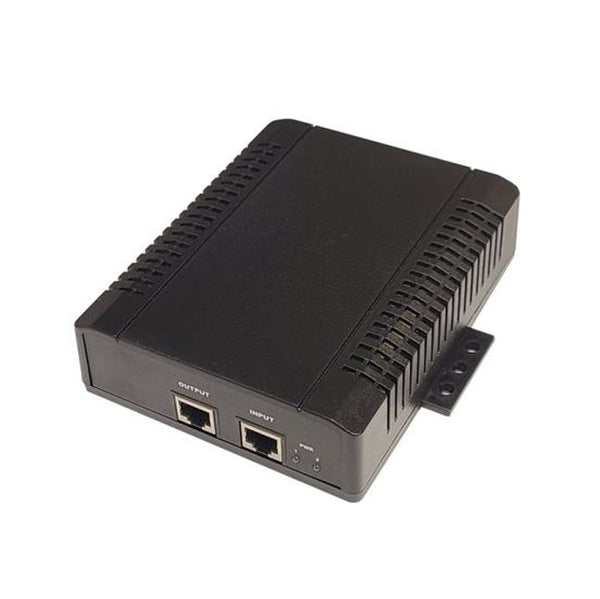

Tycon Power Systems Tp-Poe-Hp-56g 56v 112w High Power Gigabit Passive Poe
Overview
The TP-POE-HP-56G Power over Ethernet Power Source offered by Tycon Power is a quality 5 Gigabit midspan power source for years of reliable operation even in the toughest conditions. They accept data-in to a shielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work by supplying power to the remote device on all 8 Ethernet wires. The Ethernet spec supports distances up to 100m (328 feet).
The units are auto ranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated 56VDC at the output. They have various protections for surge, short circuit, overload and overvoltage. They have total power output up to 112W.
Details
Manufacturer's Product Code
TP-POE-HP-56G
AC Input
100-240VAC +/-10% 47-63Hz
POE Output
56VDC 2A 112W on all 8 wires
Data Rate
5Gbps using CAT6A or better Ethernet Cable
POE Type
Passive
Max Inrush Current (120VAC)
25A
Efficiency (min)
90%
Line / Load Regulation
1% / 5%
Ripple / Noise
1% / 2%
Protections
Over-Voltage (58-60V) , Short Circuit, Over-Current (120-150%)
Surge Protection (+/- 4KV) ( IEC 61000-4-2 )
Ethernet: 4 Pin (1/2,3/6) Common Mode Protection, 7.5V Clamping Voltage, 5.4A (8/20µs) Peak Pulse Current, <2pF Shunt Capacitance, AC Input: Operating voltage = 385VDC, Clamping voltage = 775VDC, Maximum discharge current is 1200A(8/20us)
LED Function
Two green LED: LED #1 = PoE power on pins 4,5,7,8 ; LED #2 = PoE power on pins 1,2,3,6
Certifications
FCC, CE
EMC Standards
FCC Class A EN55032 Class A
Safety Standards
UL/TUV EN62368-1
Environmental Standards
RoHs
Operating Temperature
-40 to +70°C (-40 to +158°F)
Operating Humidity (RH)
5% - 90%
Storage Temperature
-40 to +85°C (-40 to +185°F)
Case Size
116 x 150 x 41mm (4.6x5.9x1.6”)
Weight
454g (16oz)
The units are auto ranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply regulated 56VDC at the output. They have various protections for surge, short circuit, overload and overvoltage. They have total power output up to 112W.
Features
- 112W Power
- Remotely Power Equipment thru CAT5/6 Cable up to 100m
- Built in Ethernet and AC Surge Protection
- Autoranging Switching Power Supply
- Short Circuit, Over Current and Over Voltage Protection
- 10/100/1000/5000Mb Compatible
- High Temperature Industrial Operation
- Compact size – Floor / Desktop / Wall Mount
- I.T.E. Power Supply, UL Listed
Specifications
TBC
