Tycon Power Tp-Dc-1248gdx2-Hp 10-15vdc Input, Dual Gigabit 56v 802.3at Output, 42w

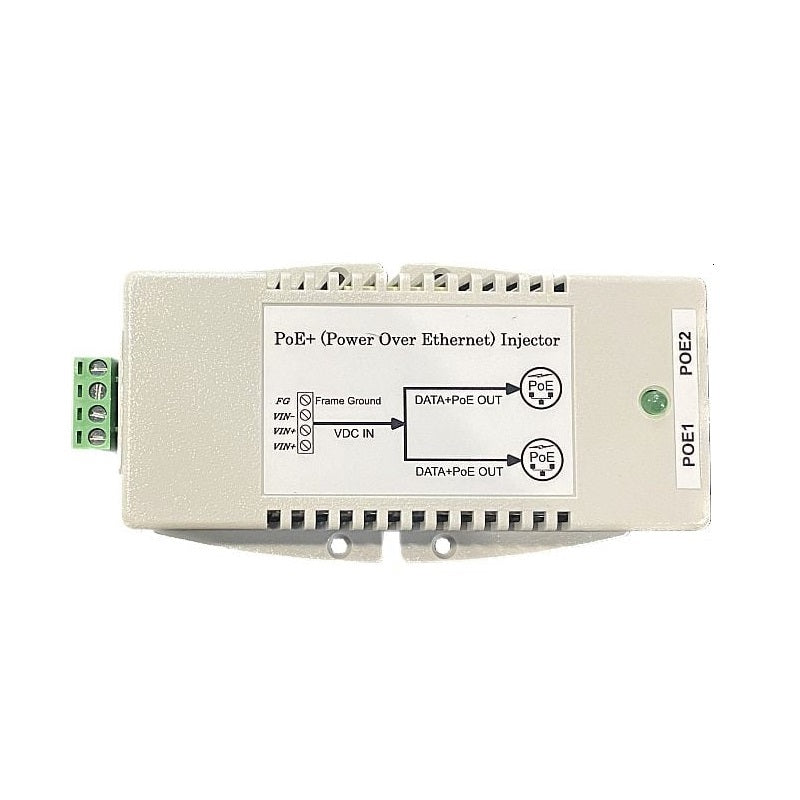

The Tycon Power TP-DC-1248GDX2-HP is a unique high power PoE injector with Dual 802.3af/at Gigabit compatible outputs. This means that two devices can be powered from a single PoE injector. The data path between the devices is handled by the injector so no PoE switch is required. Ideal for remote repeater sites.

This model runs on 12VDC. The total combined output is up to 42W.

They have two DC inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for short circuit, overload and surges caused by ESD or lightning. The built-in surge protection protects sensitive connected devices from damage due to surges on data and PoE lines. All 8 wires are protected.

The input voltage and output voltage are isolated to avoid any grounding or negative voltage issues. Details Manufacturer's Product Code TP-DC-1248GDx2-HP Input Voltage +/- 10VDC to 16VDC Input Connector Screw Type Compression Wire Terminal (12 AWG Max) POE Specification Active PoE 802.3af/at (Mode B, 2 Pair) Output Voltage (+/-2.5%) 56VDC Ethernet Connectors RJ45 (Shielded) 10/100 & Gigabit Compatible Output Current (max) 0.38A X 2 Output Power (total) 42W Self-Consumption Power 2W Efficiency (min) 80% Line Regulation, Ripple, Noise 1% Load Regulation 5% Surge Protection IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC61000-4-4 (EFT) 40A (5/50ns) IEC61000-4-5 (Lightning) 20A (8/20µs) Operating Temperature -40 to +70°C (-40 to +158°F) Operating Humidity (RH) 5% - 90% Storage Temperature -40 to +80°C (-40 to +176°F) Dimensions (LxWxH) 125 x 75 x 38mm (4.9 x 3 x 1.5”) Weight 255g (9oz)
