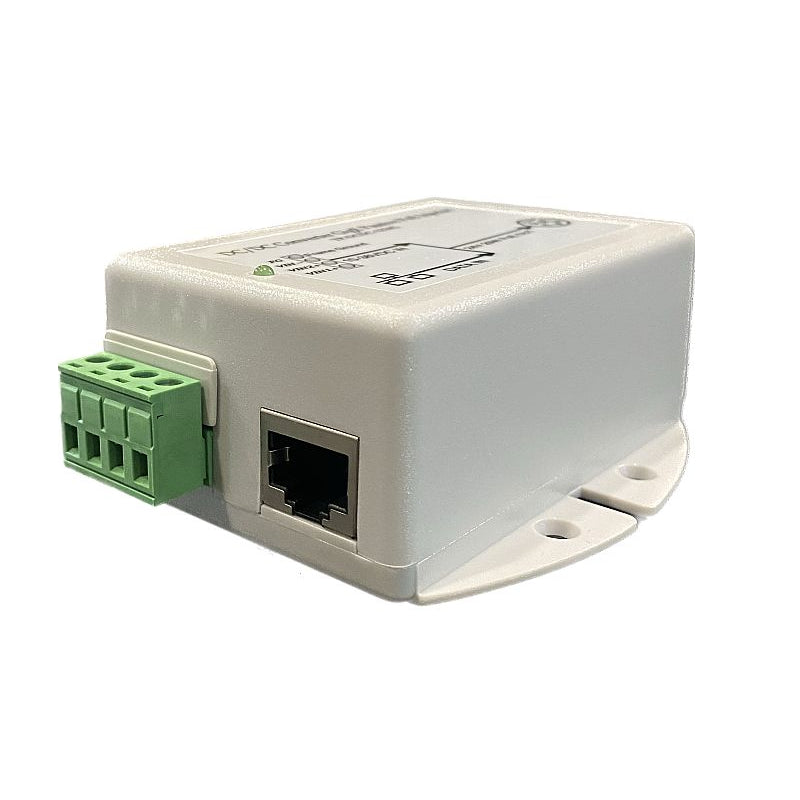

Tycon Power Systems Tp-Dcdc-1248g 9-36v Dc In, 48vdc Out 24w Dc To Dc Gigabit Converter

Tycon Power Systems TP-DCDC-1248G 9-36V DC In, 48VDC Out 20W DC to DC Gigabit Converter. The TP-DCDC-1248G offered by Tycon Power is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 12VDC or 24VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected.

They have two common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. They have various protections for surge, short circuit and overload. The input and output are isolated. A metal enclosure model is available for industrial applications.

They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The other models have power outputs up to 24W. Details Manufacturer's Product Code TP-DCDC-1248G DC Input Voltage 9VDC – 36VDC DC Input Connector Removeable Screw Type Compression Wire Terminal (12 AWG Max) DC Output Voltage (+/-2.5%) 48V (Passive) Data in & Data/POE Output Connector RJ45 (Shielded) Output Current (max) 0.5A Output Power (max) 24W Self Consumption Power 1W Efficiency (min) 75% Line Regulation 1% Load Regulation 5% Ripple 1% Noise 1% EMC Standards FCC Part 15 Sub B Class A, CE 55032, 55035 Safety Standards EN/IEC 60950 Operating Temperature -30 to +60°C (-22 to +140°F) Operating Humidity (RH) 5% - 90% Storage Temperature -40 to +80°C (-40 to +176°F) MTBF (Mean Time Between Failure) 166,000 Hours Dimensions (LxWxH) 85 x 76 x 36mm (3.4 x 3 x 1.4”) Weight 134g (4.7oz)
