Tycon Power Systems 24vdc Poe In To Gigabit 802.3af/At 35w Poe Converter

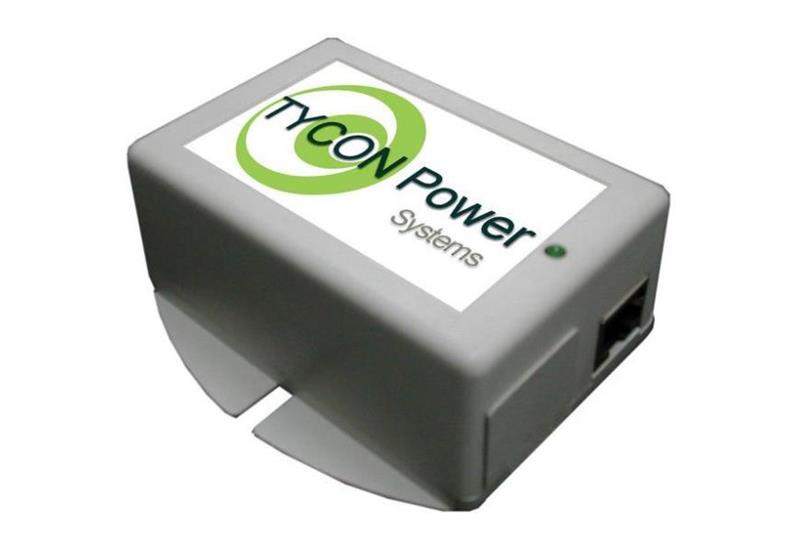

The Tycon Power TP-POE-2456GD is a unique Gigabit Power over Ethernet adapter which converts a 24VDC passive PoE input to an 802.3af/at 56VDC PoE output. The only connections required are CAT5/6 cables. The IEEE 802.3af/at compliant PoE output is capable of up to 35W power output. The PoE input is 22V to 36VDC passive PoE so the TP-POE-2456GD is perfect for running IP PoE Cameras or other PoE devices from passive PoE switches like the Tycon® TP-SW5G-NC / TP-SW8-NC or Ubiquiti TOUGHSwitch™.

The units supply power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet). They have various protections for surge, short circuit, overload and overvoltage. Details Manufacturer's Product Code TP-POE-2456GD Passive PoE Input Voltage 22VDC to 36VDC Output Overvoltage Protection 58V PoE Output 56VDC 802.3af and 802.3at compatible Output Current 0.625A @ 56V Output Power 35W Max Network Speed 10/100/1000Mbps (Gigabit) Load Regulation 5% Ripple / Noise 2% LED Function RED = 24V Input power is ON, GREEN = Successful 802.3at handshake. Output power ON Operating Temperature -40 to +70°C (-40 to +158°F) Operating Humidity (RH) 5% - 90% Storage Temperature -40 to +80°C (-40 to +176°F) Dimensions (LxWxH) 85 x 76 x 36mm (3.4 x 3 x 1.4”) Weight 150g (5.3oz)
