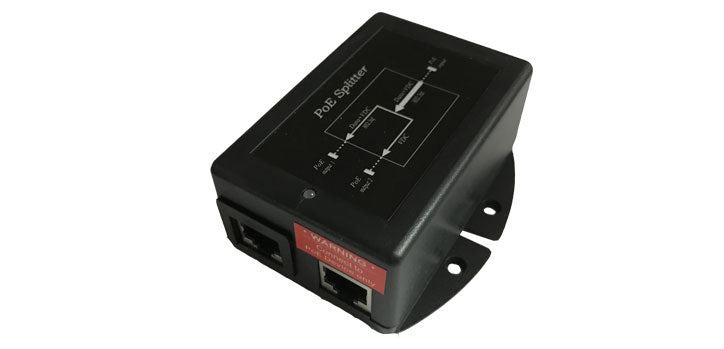

Tycon Power Gigabit Ethernet 802.3at Poe Into Dual 802.3af And Passive Poe Out

Tycon Power Gigabit Ethernet splitter 802.3at POE Into Dual 802.3af and Passive POE Out. The POE-SPLT-48G-VUB is an active splitter which accepts an 802.3at Mode A/B or passive PoE (2 or 4 pair) input and provides two PoE outputs. Output 1 is an 802.3af Mode B PoE output with Data and PoE. Output 2 is a 48V Passive PoE Mode B output with PoE only, no data. The splitter is designed to supply power and data to one device and power only to the second device. It is Gigabit compatible providing speeds to 1000MB. There are various protections for short circuit, overload and low voltage disconnect. Details Manufacturer's Product Code POE-SPLT-48G-VUB PoE Input 802.3at (Mode A or Mode B) or Passive PoE (2 or 4 pair) Input voltage 40-60VDC (56V Typical) PoE Output 1 802.3af PoE (Mode B) (Data & PoE) PoE Output 2 Passive PoE (Mode B) (PoE Only) Output Power 16W per port, 32W Max Output Voltage Vin – 1 Volt Load Regulation 5% Line Regulation 1% Low Voltage Disconnect 30V Ethernet Speed 10/100/1000MB (Gigabit Compatible) LED GREEN = Output 1 802.3af Detected, RED = No Valid 802.3af client detected EMC Standards FCC Class B NE55022 Class B Protections (auto-recover) Output Short Circuit, Overload, Input UnderVoltage (30VDC) Operating Temperature -40 to +70°C (-40 to +158°F) Operating Humidity (RH) 5% - 90% non condensing Storage Temperature -40 to +85°C (-40 to +185°F) Dimensions (LxWxH) 85 x 78 x 36mm Weight 113g (4oz)
