Tycon Power 36-72vdc In, 56v 802.3at Gigabit Poe Output, 35w Dc To Dc Gigabit Poe Converter

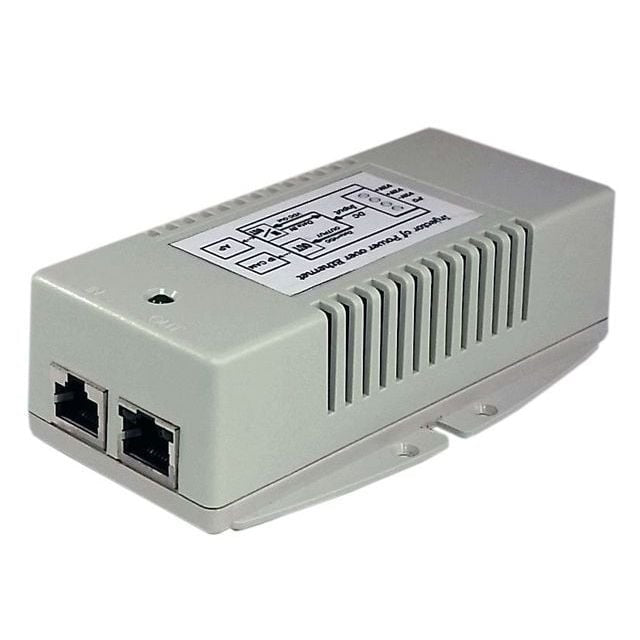

The Tycon Power TP-DCDC-4848GD-HP is a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at Power over Ethernet from a 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected. They have a common (-) and two (+) inputs for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications.

They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. They work by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 50W. Details Manufacturer's Product Code TP-DCDC-4848GD-HP DC Input Voltage +/- 36 to 72VDC DC Input Connector Removeable Screw Type Compression Wire Terminal (12 AWG Max) DC Output Voltage 56V (802.3af/at) Data in & Data/POE Output Connector RJ45 (Shielded) Output Current (max) 0.625A Output Power (max) 35W Self Consumption Power 1W Efficiency (min) 75% Line Regulation 1% Load Regulation 5% Ripple 1% Noise 1% EMC Standards FCC Class B EN55022 Class B Safety Standards UL1950, CSA 22.2 &TUV EN60950 Operating Temp -30 to +60°C (-22 to +140°F) Operating Humidity 5% - 90% Storage Temp -40 to +80°C (-40 to +176°F) Dimensions (LxWxH) 125 x 75 x 38mm (4.9 x 3 x 1.5”) Weight 300g (10.6oz)
