Tycon Power 10-60vdc In Dual Channel 802.3af/At Gigabit Poe Dc To Dc Convertor Adaptor

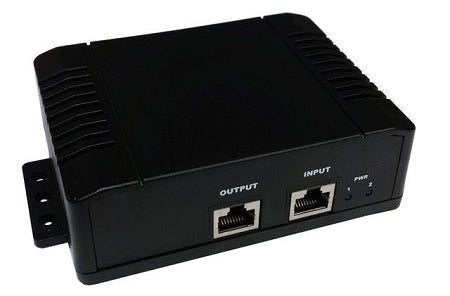

Tycon Power 10-60VDC in Dual Channel 802.3af/at Gigabit PoE DC to DC Convertor Adaptor . The Tycon Power Gigabit compatible TP-DCDC-1256G-VHP and TP-DCDC1256GD-VHP area special very high power DC to DC converters / POE inserters designed especially for Ubiquiti airFiber antenna systems and other systems which require high power passive POE such as Axis High Power POE PTZ security cameras. The unique POE inserter supplies 56VDC POE power on all 8 Ethernet wires (4 Pair).

The wide input voltage range (10VDC to 60VDC) makes these units universal in battery powered applications. The units input and output is isolated so they work in a negative ground of positive ground system. They have two DC inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for surge, short circuit and overload. The units come complete with a DIN Rail mounting kit for mounting to a standard DIN rail. Details Manufacturer's Product Code TP-DCDC-1256G-VHP Input Voltage +/- 10VDC to 60VDC Input Connector Screw Type Compression Wire Terminal (12 AWG Max) DC Output Voltage IEEE 802.3at (4 Pair) Compatible Data in & Data/POE Output Connector RJ45 (Shielded) Output Current (max) 1.25A Output Power (max) 70W Self Consumption Power 2W Efficiency (min) 80% Min (10VDC to 60VDC Input) Line Regulation, Ripple, Noise 1% Load Regulation 5% EMC Standards FCC Class B EN55022 Class B Safety Standards CSA 22.2 &TUV EN60950 Operating Temp -40 to +70°C (-40 to +158°F) Operating Humidity 5% - 90% Storage Temp -40 to +85°C (-40 to +185°F) Dimensions (LxWxH) 90 x 118 x 40mm (3.5 x 4.6 x 1.57”) Weight 335g (11.8oz)
