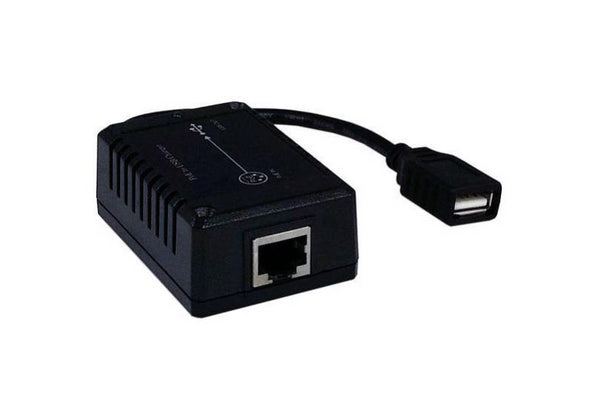

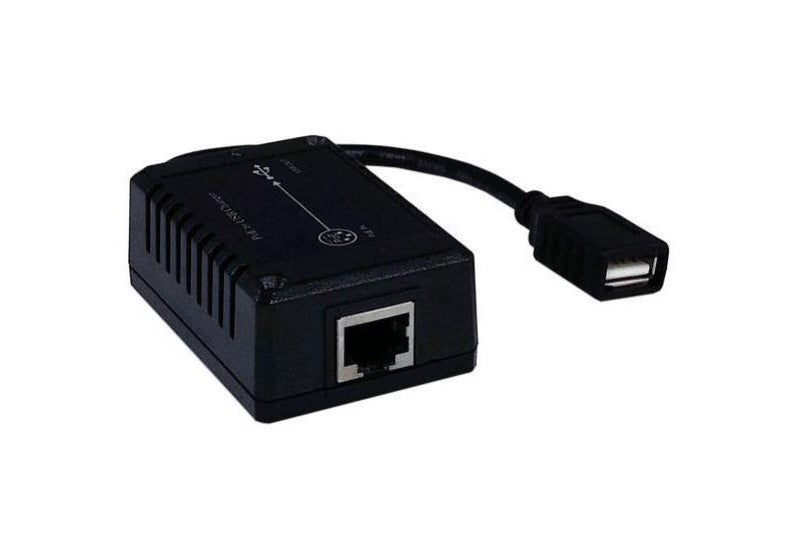

Tycon Poe In Usb Out Splitter / Converter

The Tycon Power POE-MSPLT line of dynamic splitters are compact Power over Ethernet adapters which splits the Data and PoE power onto separate output connectors and converts the active PoE (IEEE802.3af/at) input into a regulated DC output voltage. The DC output is provided on a standard 5.5mm/2.1mm barrel connector and the Data output is provided on standard RJ45 network connector, each on a dedicated 6” cable. In addition to being compatible with 10/100MB Ethernet speeds, inputs and outputs are isolated and the devices include protections for short circuit and overload. The unique POE-MSPLT-USB provides a USB output to power smartphones and tablets from PoE devices like network switches or PoE injectors. Details Manufacturer's Product Code POE-MSPLT-USB DC Input Voltage IEEE 802.3af/at or Passive PoE (36 – 60VDC) DC Output Voltage 5VDC USB Data in & Data/POE Output Connector RJ45 (Shielded) Output Current (max) 3A Output Power (max) 15W Ethernet Speed 10/100Mbps Interfaces (1) POE Input, (1) LAN, (1) 2.1mm DC Plug Output Dimensions (LxWxH) 65 x 45 x 26mm
