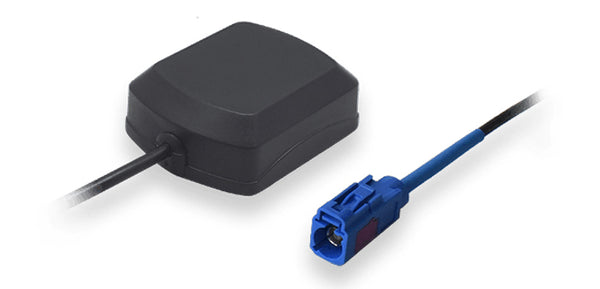

Teltonika Gnss Adhesive Fakra Antenna
Overview
Teltonika 2dBi GNSS Adhesive Antenna with FAKRA C Female straight connector.
Details
Manufacturer's Product Code
003R-00235
Frequency
1575.42-1602 MHz
Polarization
RHCP
Antenna Gain
2 dBi
Antenna V.S.W.R
< 1.5
Impedance
50 Ohm
Max Axial Ratio
3 dB
LNA Gain
26±2 dB
LNA Noise Figure
< 1.5 dB
Supply Voltage
2.2-5.0 VDC
Current Consumption
5-15 mA
LNA V.S.W.R
< 2.0
Cable
RG174, 3000 mm
Connector
FAKRA C Female straight
Mounting Method
Adhesive
Operating Temperature
-40 to +85
Operating Relative Humidity
95 % max
RoHS Compliant
Yes
Features
- RG174 3 meter cable
- FAKRA C Female straight connector
Specifications
TBC
