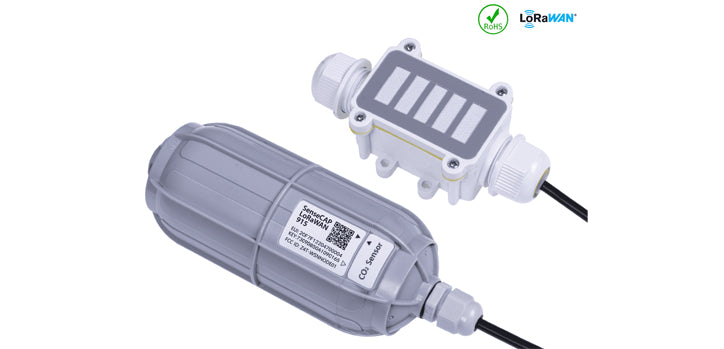

Seeed Sensecap SC-CO2-923 Co2 Iot Sensor

Seeed SenseCAP LoRaWAN AS923 CO2 IoT Sensor. The Seeed SenseCAP Wireless CO2 IoT Sensor measures the level of carbon dioxide (CO2) gas at the range of 0 ~ 40000 ppm in the atmosphere, applicable for both indoor and outdoor environments. It is perfect for monitoring CO2 ppm in outdoor farms, weather stations, greenhouses, industrial campuses, factories, schools, office buildings, hotels, hospitals, transportation stations, and anywhere data of CO2 emission is needed.

This device incorporates a built-in LoRa transmitter based on SX1276 for long-range transmission, an NDIR CO2 sensor, and a custom battery. It is specifically designed and optimized for use cases powering end devices by batteries for years. To minimize the power consumption, the device wakes up, transmits the collected CO2 data to the gateway, and then goes back to sleep.

Under the best of circumstances, the battery is expected to last for 1.5 years, depending on the data transmission intervals. Please note that the default interval is once per hour. This is a configurable feature.

SenseCAP Sensor Node adopts a modular design, integrating the data logger with the sensor probe, which is replaceable by other SenseCAP sensor probes.

The data logger part is designed with industry standards and equipped with an IP66 waterproof enclosure. To ensure accuracy and sensitivity, we chose the material with the optimal breathable aperture for the sensor probe, which however is not waterproof. Hence, this CO2 Sensor is applicable only for indoor environments. The product is dustproof, making it ideal for environments such as chicken farms, where there is poultry dust.
