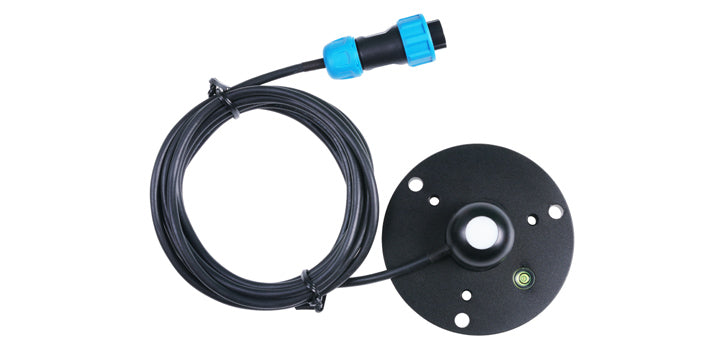

Seeed Industrial Par Iot Sensor Modbus-Rtu Rs485, With Waterproof Aviation Connector

Seeed Industrial PAR IoT Sensor MODBUS-RTU RS485, with Waterproof Aviation Connector. The Seed industrial-grade PAR IoT sensor featuring high performance, accuracy, and easy-installment, is designed to measure real-time photosynthetic light levels, which is the primary driver of plant photosynthesis. This instrument is able to monitor the PAR in environments with natural light sources across a radiation range from 400 to 700 nm and provides important parameters for researchers and farmers. The sensor contains a Silicon photodetector. When there's light in, the sensor generates a voltage signal that is directly proportional to the PAR under the light source. You are able to obtain the measurement value in a unit of µmol/m2•s. The instrument supports the MODBUS-RTU RS485 protocol. You can therefore directly connect this PAR sensor with RS485 data loggers or digital voltmeters to create monitoring systems that meet your own demand.

This PAR sensor is robust with IP66 enclosure and is able to withstand a wide range of temperature from -30°C to 75°C, unlocking applications in harsh outdoor environments to support photosynthesis, solar, and ecological research, and to assist smart agriculture, outdoor large-scale plantation, greenhouse farming, tourism, meteorological sensing, etc. Details Product number S-PAR-02 Measuring range 0 ~ 2500 µmol/m²·s Response spectrum 400 ~ 700nm Resolution 1 µmol/m²·s Supply voltage 5V ~24V Interface RS-485 Protocol MODBUS-RTU RS485(0-2.5V voltage output can be customized) Measurement interval 1s Linearity Maximum deviation 1% Stability Year offset <2% Response time 10 µs Operating temperature -30 ~ +75C Humidity 0 ~ 100% (no condensation) Cable length 2m Net weight 300g
