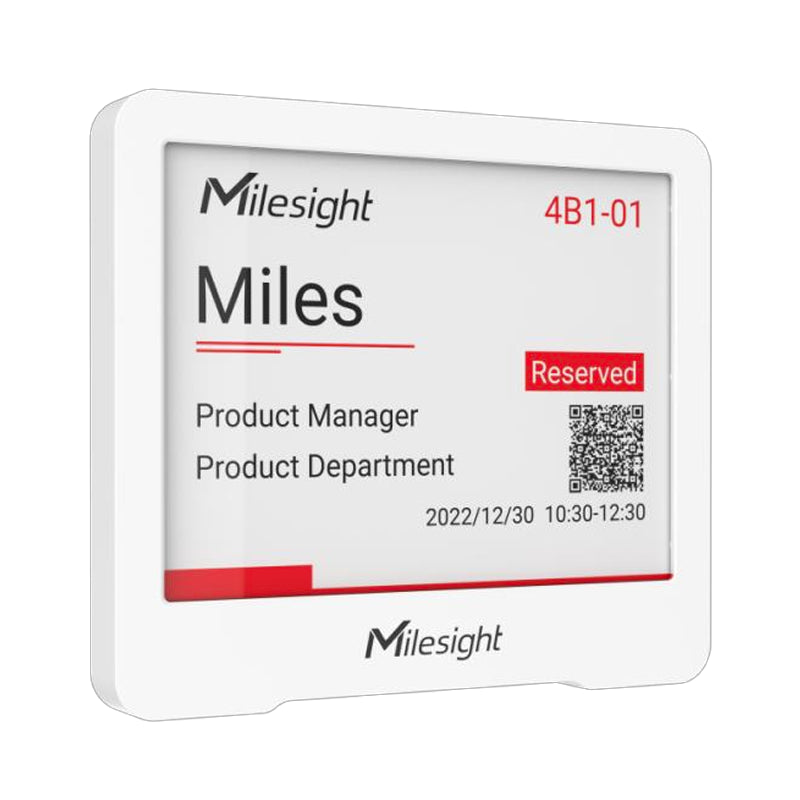

Milesight DS3604 E-Ink Display
Overview
Milesight LoRaWAN AS923/AU915 DS3604 IoT E-Ink Display. E-Ink digital paper is a form of ink made from micro-particles in a thin film layer. The e-ink display is bistable, which allows the image on the e-ink screen to be retained even when all power is removed. Pre-customized Templates Are Flexible for Different Scenarios, such as Workplace, Hotel, Hospital, Retail Store, Etc. Up to 150 Languages Including English, Spanish, French, Japanese, Portuguese, Chinese (Simplified & Traditional), etc. (Exclude Hebrew, Arabic & Thai).
Perfect for smart buildings, smart city deployments or industrial use-cases.
Perfect for smart buildings, smart city deployments or industrial use-cases.
Features
- Bigger E-ink Screen Featuring Red/White/Black Color Display
- Customized Templates in Multiple Modules and Languages
- Low Power Consumption with up to 5 Years Battery Life with 3 × 590mAh CR2450 Lithium Batteries
- Open API and a LoRaWAN Button Enable Various Applications
- Support Local and Remote Control for Bulk Deployment
- Flexible, Shatterproof and Light 4.2 Inches Screen
- Bi-stable EPD (E-ink Display) Black, White and Red Colors
- 400 × 300 Pixels Display with Near 180° Viewing Angle
| Details | |
|---|---|
| Manufacturer's Code | DS3604-915M |
| Frequency | AU915/AS923-1&2&3&4 |
| Technology | LoRaWAN® |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class A/Class B ( Default OTAA Class B) |
| E-ink Screen | 4.2-inch Black & White & Red E-Ink Screen |
| Resolution | 400 x 300 Pixels |
| DPI | 119 |
| Viewing Angle | 180° |
| Refresh Rate | 16s (10 – 40°C) |
| Display Character | Latin alphabet, English alphabet, Cyrillic alphabet, Greek alphabet, Chinese character, Japanese character, and Hangul |
| Display Languages | Support Displaying up to 150 Languages Including English, Chinese (Simplified & Traditional) , Spanish, French, Japanese, Portuguese, etc. (Exclude Hebrew, Arabic & Thai) |
| Button | 1 x Reset Button (Internal) + 1 x Screen Button |
| Buzzer | 1 x Buzzer |
| Configuration | NFC Configuration via Mobile App |
| Power Supply | 3 × 590mAh CR2450 Lithium Batteries |
| Battery Life | Around 5 Years (Class A Mode + 1 Screen Refresh per Day) Around 1 Year (Class B Mode + 12 Screen Refreshes per Day) |
| Operating Temperature | 0°C to +40°C (0? to +104?) |
| Operating Humidity | 0% to 95% (non-condensing) below 25°C/77? |
| Ingress Protection | IP30 |
| Color & Material | White, ABS + PC |
| Dimension | 99 × 87 × 10.5 mm (3.90 × 3.43 × 0.41 in) |
| Installation | 3M Tape Mounting, Wall Screw Mounting |
Specifications
TBC
IoT Cloud SaaS
IoT Cloud Saas Service
Smart Protect has partnered with Scopious IoT to help you to start building your IoT network including any of our IoT sensors, devices, controllers or gateways. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.
