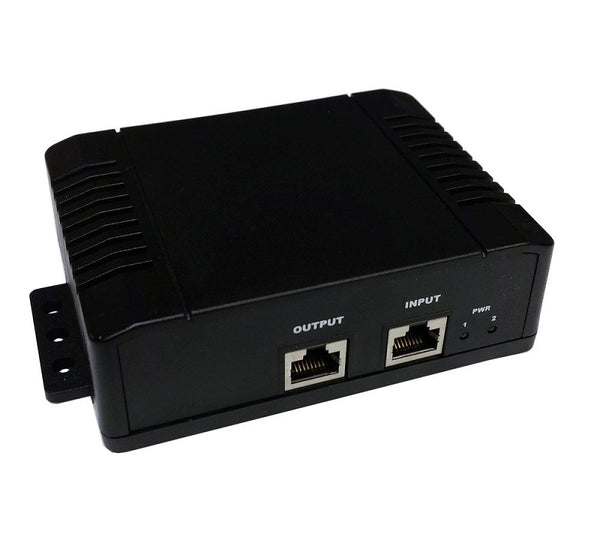

Tycon Power Tp-Dcdc-1256gd-Bt 10g 802.3bt Dc To Dc Poe Converter

The Tycon Power Systems TP-DCDC-1256GD-BT is a 10G, 802.3at/bt compatible, high power DC to DC converter/PoE inserter designed for operation in industrial environments.

The inserter conforms to the new IEEE802.3bt Power Over Ethernet standards for industry compatibility. The PoE inserter supplies 56VDC PoE power on all 8 Ethernet wires (4 Pair). They are backward compatible with 802.3at so they will safely power 802.3at and 802.3af devices in addition to the new 802.3bt devices.

The wide input voltage range (10VDC to 60VDC) of the TP-DCDC-1256GD-BT makes these units universal in battery powered applications. The input and output are isolated so they work in a negative ground or positive ground system. They have two DC inputs for connecting 2 power sources, like a primary and backup power source. They have various protections for low voltage, surge, short circuit and overload. Details Product Code TP-DCDC-1256GD-BT Input Voltage +/- 10VDC to 60VDC DC Input Connector Removeable Screw Type Compression Wire Terminal, 5 Pin (12 AWG Max) POE Specification IEEE802.3bt (4 Pair); backward compatible with 802.3at and 802.3af Output Voltage (+/-2.5%) 56VDC Data Throughput CAT6A or better cable: 10G @ 80M , 5G @ 100M, CAT5E Cable: 5G @ 100M Data in & Data/POE Output Connector RJ45 (Shielded) Output Current (max) 1.25A Total Output Power (max) 70W Total Self-Consumption Power 2W Efficiency 80% Min Low Voltage Protection <9V Turn off Input Surge Protection 30kV (IEC 61000-4-2,-4,-5) Line Regulation, Ripple, Noise 1% Load Regulation 5% EMC Standards FCC Class B EN55022 Class B Safety Standards CSA 22.2 &TUV EN60950 Operating Temperature -40 to +70°C Operating Humidity (RH) 5% - 90% Storage Temperature -40 to +85°C MTBF (Mean Time Between Failure) 68,278 Hours Dimensions (LxWxH) 90 x 118 x 40mm Weight 335g
